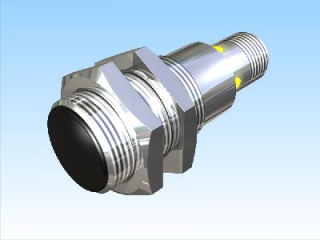

KJ5-M18MB50-DNS-V2传感器

Pulsotronic波尔索KJ5-M18MB50-DNS-V2传感器，传感器优惠惊喜，德国Pulsotronic波尔索品质，上海锐誉实业有限公司期待你的咨询。

德国Pulsotronic波尔索传感器订购就找上海锐誉：



联系人：于经理

TEL：021-50189957

Fax：021-51685502

QQ：2792258890

Email:rymro@sina.com



Pulsotronic波尔索产品描述：

 Name     KJ5-M18MB50-DNS-V2
Number     08317842165
Matchcode     9984-2165
Switching distance     5 mm
Mounting     shielded
Switch type     N.O.
Signal Type     DC NPN
Connection
Technical Spec
Operating voltage     10 - 30 VDC
Max. ripple     ≤ ≤10 %
Voltage drop     ≤ 2,4 V
Max. load current     200 mA
No load current     ≤ 13 mA
Leakage current     ≤ 10 µA
Switching frequency     800 Hz
Switching hysterese     ≤ 15 %
Operating temperature     von -25 ° C bis 70 ° C
Temperature drift     ≤ 10 %
Repeat accuracy     ≤ 10 %
Operating state     No
Swiching state     Yes
Digital output     Yes
short-circuit proof     Yes
overload protection     Yes
reverse voltage protection     Yes
Protection Category     IP67
EMV - Level     DIN EN 60947-5-2:2008
Housing Material     Brass, nickel plated
material active face     PCB
termination     Connector M12 4pol

更多Pulsotronic波尔索传感器推荐：

08317821450    KJ4-M12MB60-DPÖ-V2
08317821550    KJ4-M12MB60-DNÖ-V2
0831xxxxxxx    KJ4-M12MB50-DPA
08310001904    KJ4-M12MB50-DNA
08310000388    KJ4-M12MB60-DPA-V2
0831xxxxxxx    KJ4-M12MB60-DNA-V2
08317821200    KJ6-M12MN50-DPS
08317821600    KJ6-M12MN50-DPÖ
08317842000    KJ5-M18MB35-DPS
08317842100    KJ5-M18MB35-DNS
08317842065    KJ5-M18MB50-DPS-V2
08317842165    KJ5-M18MB50-DNS-V2
08317844900    KJ8-M18MB40-DPS
08317844800    KJ8-M18MB40-DNS
08317844950    KJ8-M18MB50-DPS-V2
08317844850    KJ8-M18MB50-DNS-V2
