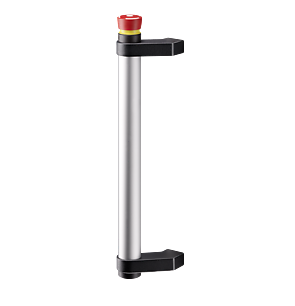

TGM-300-x x 2Ö x-R（门把手开关）

steute世德多功能控制开关TGM-300-x x 2Ö x-R（门把手开关）诚意报价，欢迎诚意客户点击咨询，上海锐誉快速为你回复；

TGM-300-x x 2Ö x-R
多功能控制
物料号: 1316392
特征/选项


    铝门把手，银色亚光电镀
    寿命长
    选型用于左铰链门
    紧急停止按钮依据EN 60947-5-5：2-通道
    带有接插件连接器M12 x 1, 12-针


技术参数
标准 EN 60947-5-1, EN 60947-5-5
外壳 Aluminium, silver matt anodised
防护等级 IP 67 符合 IEC/EN 60529
连接类型 Plug-in-connector M12 x 1, 12-poles
LED灯的额定工作电流/电压 10 mA/24 VDC
Ie/Ue 0.5 A/24 VDC
Ui 30 VDC
防污等级 3
机械寿命 > 1百万次操作
环境温度 –25 °C … +55 °C

TGM-300-W GR xx-R 1314772
TGM-200-W GR x S-R 1315894
TGM-300-W GR x S-R 1315990
TGM-200-x x 2Ö x-R 1316388
TGM-300-x x 2Ö x-R 1316392
TGM-200-W GR 2Ö x-R 1317126
TGM-300-W GR 2Ö x-R 1317128
TGM-200-W GR 2Ö S-R 1317501
TGM-300-W GR 2Ö S-R 1317503
TGM-200-x x x 1319036
TGM-300-x x x 1319038
TGM-200-x x x-L 1319040
GFSI 2Ö/2S 53203001 1161879
GFSIM 1Ö/1S 53202001 1159404
GFSIM 2Ö/2S 53204001 1184185


GF(S)I 1Ö/1S 1 x 04.60.4103 1041358
GF(S)I 2Ö/2S 2 x 04.40.4103 1040873


Typenbezeichnung alte Mat.-Nr. Mat.-Nr.

GF 2 1ÖS/1ÖS 82105001 1048770
GF 2 1ÖS/2ÖS 82129001 1048808
GF 2 2ÖS/1ÖS 82135001 1048810
GF 2 2ÖS/2ÖS 82107001 1048798
GFM 2 1ÖS/1ÖS 82106001 1048793
GFM 2 1ÖS/2ÖS 82130001 1048809
GFM 2 2ÖS/1ÖS 82136001 1048811
GFM 2 2ÖS/2ÖS 82108001 1048805
GFS 2 1ÖS/1ÖS 82205001 1048842
GFS 2 1ÖS/2ÖS 82229001 1048903
GFS 2 2ÖS/1ÖS 82235001 1048906
GFS 2 2ÖS/2ÖS 82207001 1048883
GFSM 2 1ÖS/1ÖS 82206001 1048877
GFSM 2 1ÖS/2ÖS 82230001 1048905
GFSM 2 2ÖS/1ÖS 82236001 1048908
GFSM 2 2ÖS/2ÖS 82208001 1048893
